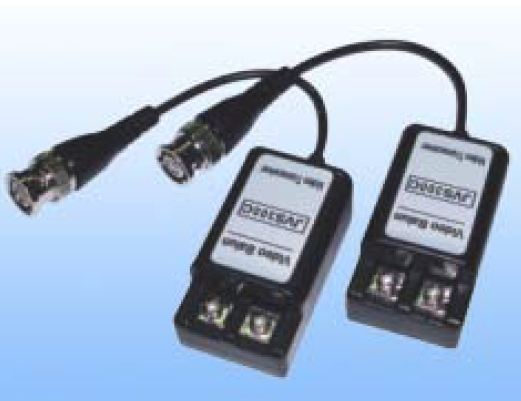

Cat 5 Transceiver (DIGI-300C 1way)
|
|---|
按圖放大 |
Features :
* 1 Channel Video Transceiver, passive video balun
* Receiving & Transmitting Video Signals
* Video Transmission via UTP Category-5 Cable with power Supply
* Outstanding Interference Rejection / Transient Protection
* Standard Routing UTP (Unshielded Twisted Pair), low installation cost
* 500M Distance Color Transmission
* No Power Required
Product Information :
| Specification : | Frequency response DC-6Mhz Common-mode/Differential-mode |
|---|---|
| Video : | Rejection: 15Khz~6Mhz 60dB Type |
| Audio/Data : | NO |
| Power Source : | NO |
| Circuit : | Specification: 24AWG or VCP>5m/Impedance: 100Ω ±20% |
| Circuit : | DC Loop Impedance: 18Ω/100m Differential Capacitor: 62pF/m(Max.) |
| Anti-video Function : | 6000V 1.2μS x 50S |
| Resistance : | BNC Concentric Cable: 75Ω/100Ω or RJ-45 100Ω |
| Control : | Receiving: Distance, Brightness, Contrast is selectable |
| Control : | Transmitting: Gain Controllable |
| Environment : | Temperature: 0~50℃/Humidity: 0~90% |
