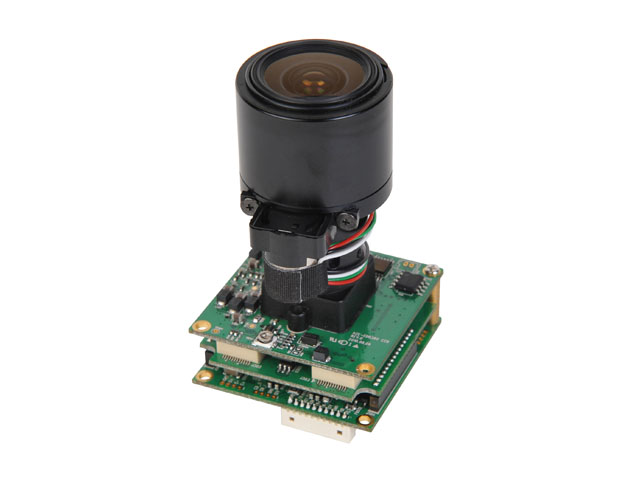

Model : ACE-EDR380

  • 1/3" 960H SONY Double Scan Super HAD CCD ll
  • Ultra-High Resolution of 700 TVL
  • Min. Illumination of 0.08 Lux (Color) / 0.04 Lux (B/W) (30IRE@F1.2, AGC High)
  • True Day & Night with ICR Mechanism
  • 3DNR / DSS / WDR
  • Privacy 15 Zones / Motion Detection
  • Face Detection / Multi-Language OSD
  • Fixed Board, Pinhole, Varifocal Lens or C/CS Mount / 3x Digital Zoom
  • RS-485 Communication
  • Module Size (38mm x 38mm) - 3 Layer

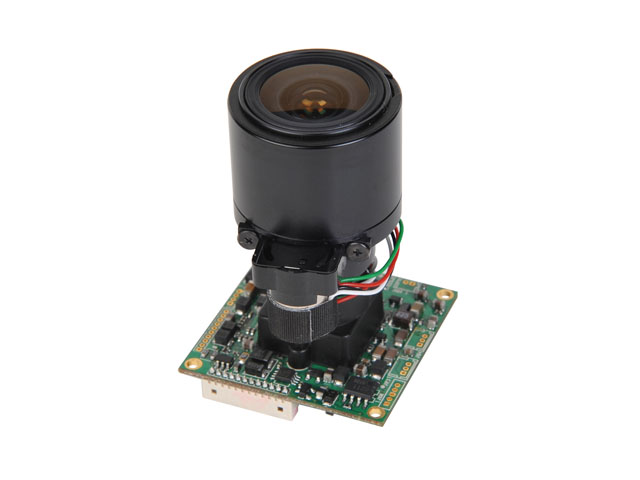

Model : ACE-M387

  • 1/3" 960H SONY EXview HAD CCD ll
  • Ultra-High Resolution of 700 TVL
  • Min. Illumination of 0.05 Lux (Color) / 0.02 Lux (B/W) (30IRE@F1.2)
  • True Day & Night with ICR Mechanism
  • 2DNR / ATR (Adaptive Tone-curve Reproduction / Digital WDR)
  • Privacy Masking / Motion Detection
  • Multi-Language OSD (Option)
  • Fixed Board, Pinhole, Varifocal Lens or C/CS Mount
  • Module Size (38mm x 38mm)

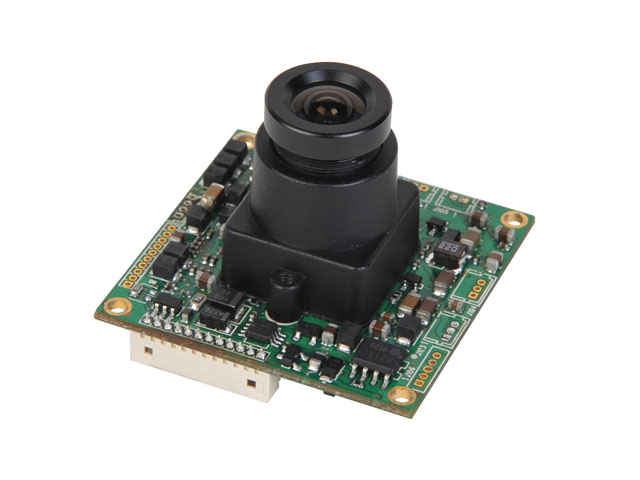

Model : ACE-M321

  • 1/3" 960H SONY EXview HAD CCD ll
  • Ultra-High Resolution of 700 TVL
  • Min. Illumination of 0.05 Lux (Color) (30IRE@F2.0)
  • 2DNR / ATR (Adaptive Tone-curve Reproduction / Digital WDR)
  • Privacy Masking / Motion Detection
  • Multi-Language OSD (Option)
  • Fixed Board, Pinhol Lens
  • Compact Module Size (32mm x 32mm)

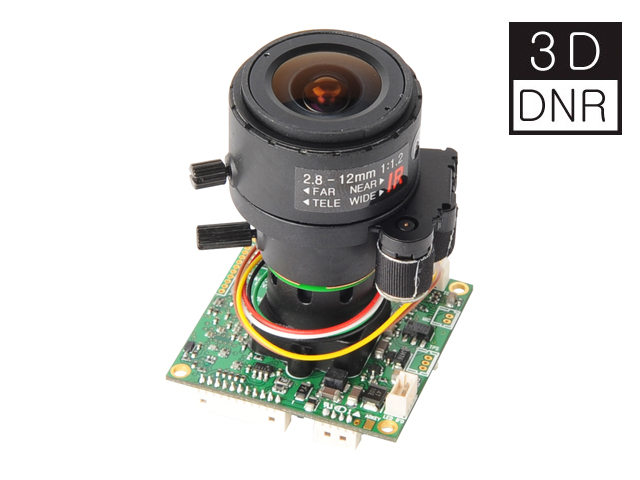

Model : ACE-M385

  • 1/3" Sony Super HAD CCD Ⅱ
  • High-Resolution of 550 TVL
  • 3D DNR (3D Digital Noise Reduction) / Digital WDR
  • Board Mount , Pinhole, Varifocal, C-Mount Lens
  • Digital Day & Night
  • BLC, HSBLC, Sense-up, Privacy Mask (8 Zone)
  • 32x Digital Zoom
  • OSD with Built-In Joystick Controller
  • Compact size Module
  • Extreme Clear Cutting Edge Picture

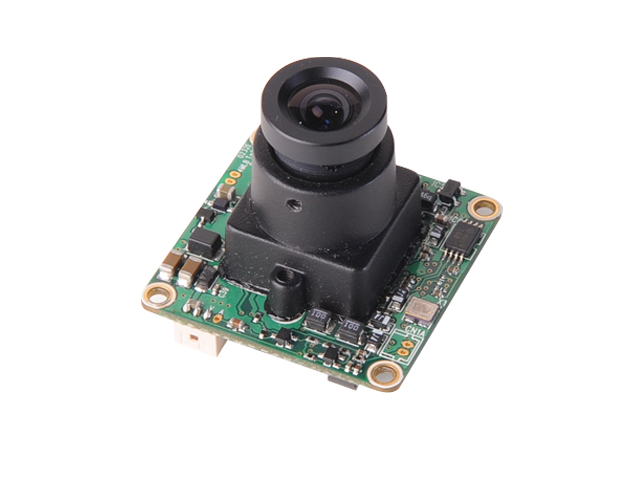

Model : ACE-VMN320/VMN380

  • 1/3" Sony Super HAD CCD Ⅱ
  • High Resolution of 550 TVL
  • Fixed Iris Board, Pinhole, Vari-Focal Lens
  • Min.Illumination of 0.05 Lux / Faceplate
  • Automatic Gain Control
  • Auto Tracking White Balance
  • Auto Back Light Compensation
  • Extreme Clear Cutting Edge Picture
  • Option : Audio

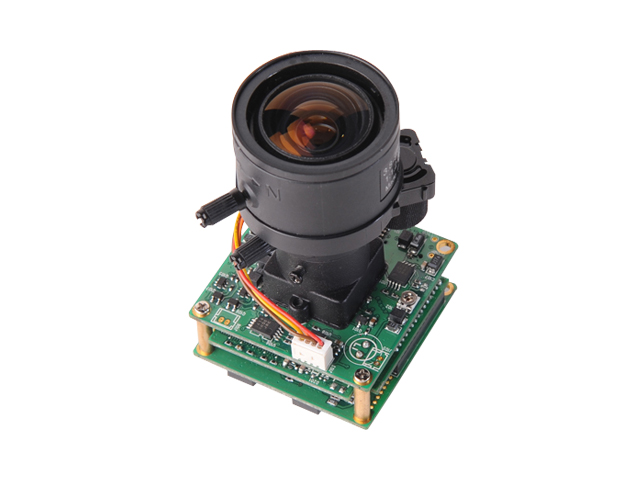

Model : ACE-WDR380

  • 1/3" SONY Vertical Double-Density Interline CCD
  • High Resolution of 550 TVL
  • Fixed Iris Board, Pinhole, Vari-Focal Lens
  • Min.Illumination of 1.0 Lux / F2.0, AGC Max 0.001 Lux (DSS)
  • Powerful WDR (Wide Dynamic Range) Performance
  • Intensified DSS Accumulation Field Number up to 500x
  • Privacy Image Masking up to 8 areas
  • Motion Detection with Level Adjustment
  • Multi-Language OSD Menu (English, Chinese, German, Russian, Spanish)
  • RS-232C Remote Setup Control

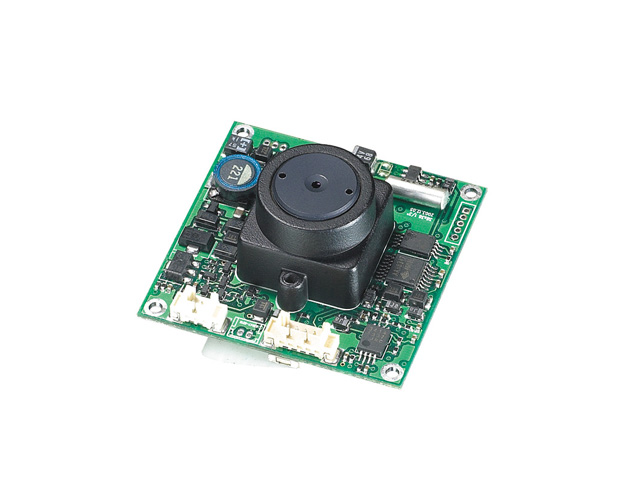

Model : ACE-S300/S380

  • 1/3" Sony Super HAD CCD
  • Standard Resolution of 380 TVL
  • Fixed Iris Board, Pinhole Lens
  • Min. Illumination of 0.5 Lux / F2.0
  • Option : Mirror Mode, Digital Day & Night, Audio

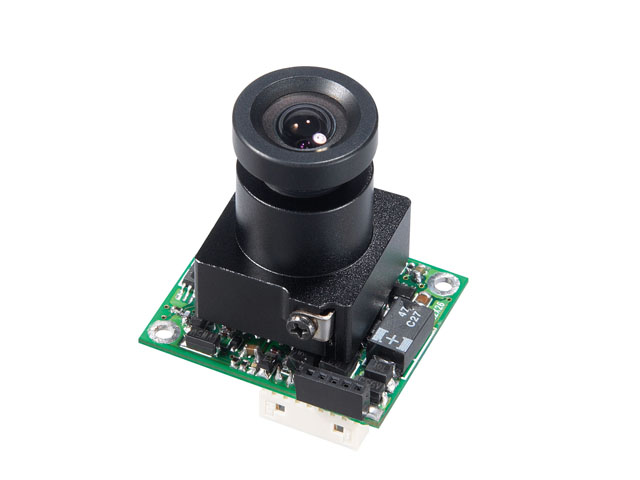

Model : ACE-S226

  • 1/4" Sony Super HAD CCD
  • Standard Resolution of 380 TVL
  • Fixed Iris Board, Pinhole Lens
  • DC5V Low Voltage
  • Min. Illumination of 0.5 Lux/F2.0
  • Dimension : 22(W)×26(H)㎜

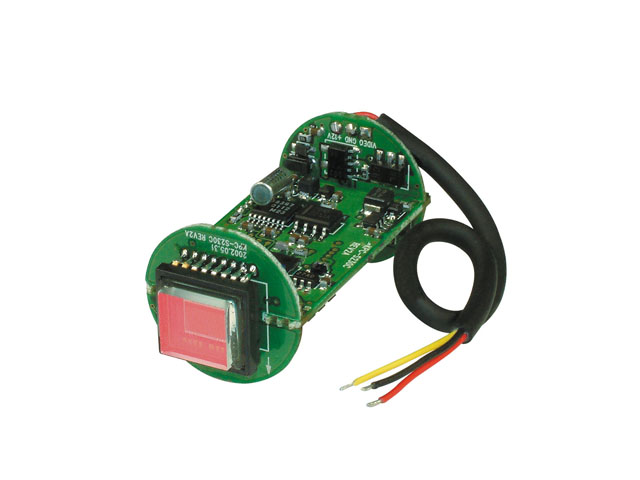

Model : ACE-S205

  • 1/3" Sony Super HAD CCD
  • Standard Resolution of 380 TVL
  • Fixed Iris Board, Pinhole Lens
  • Min. Illumination of 0.5 Lux / F2.0
  • Option : Mirror Mode, Digital Day & Night, Audio

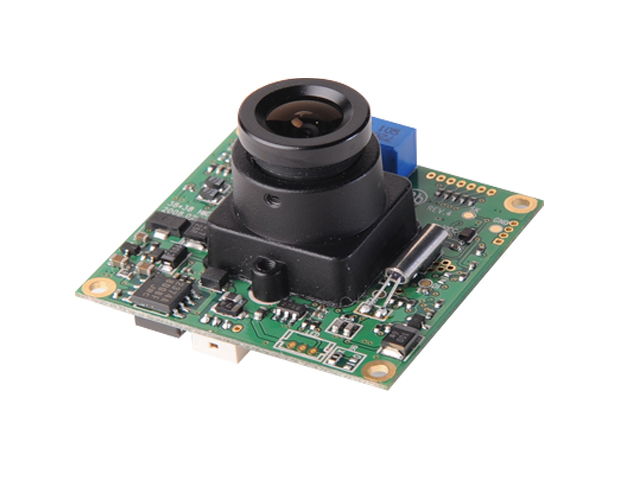

Model : ACE-M381

  • 1/3" Sony Super HAD CCD
  • Standard Resolution of 380 TVL
  • Fixed Iris Board, Pinhole Lens
  • Min. Illumination of 0.5 Lux / F2.0
  • Option : Mirror Mode, Digital Day & Night, Audio
